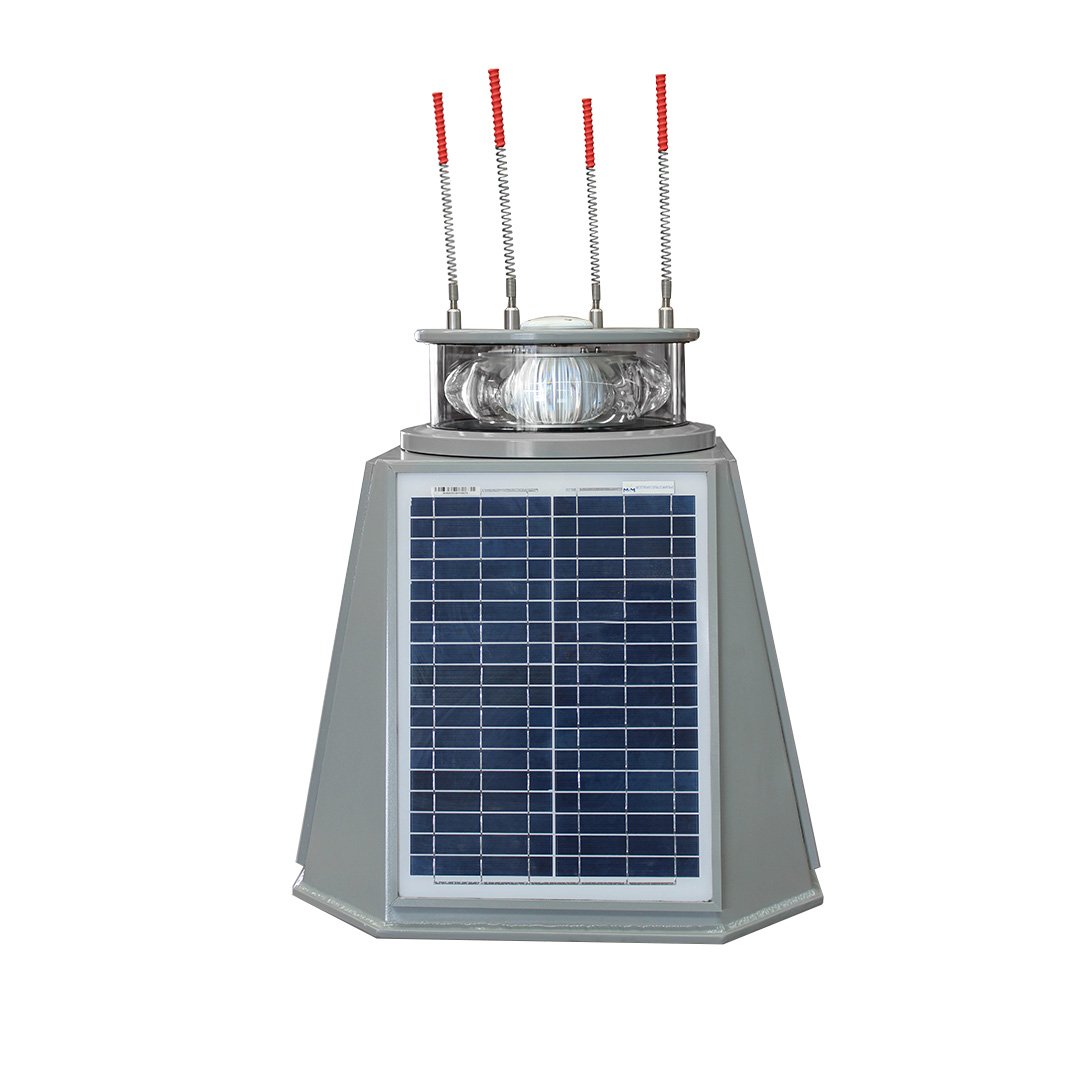

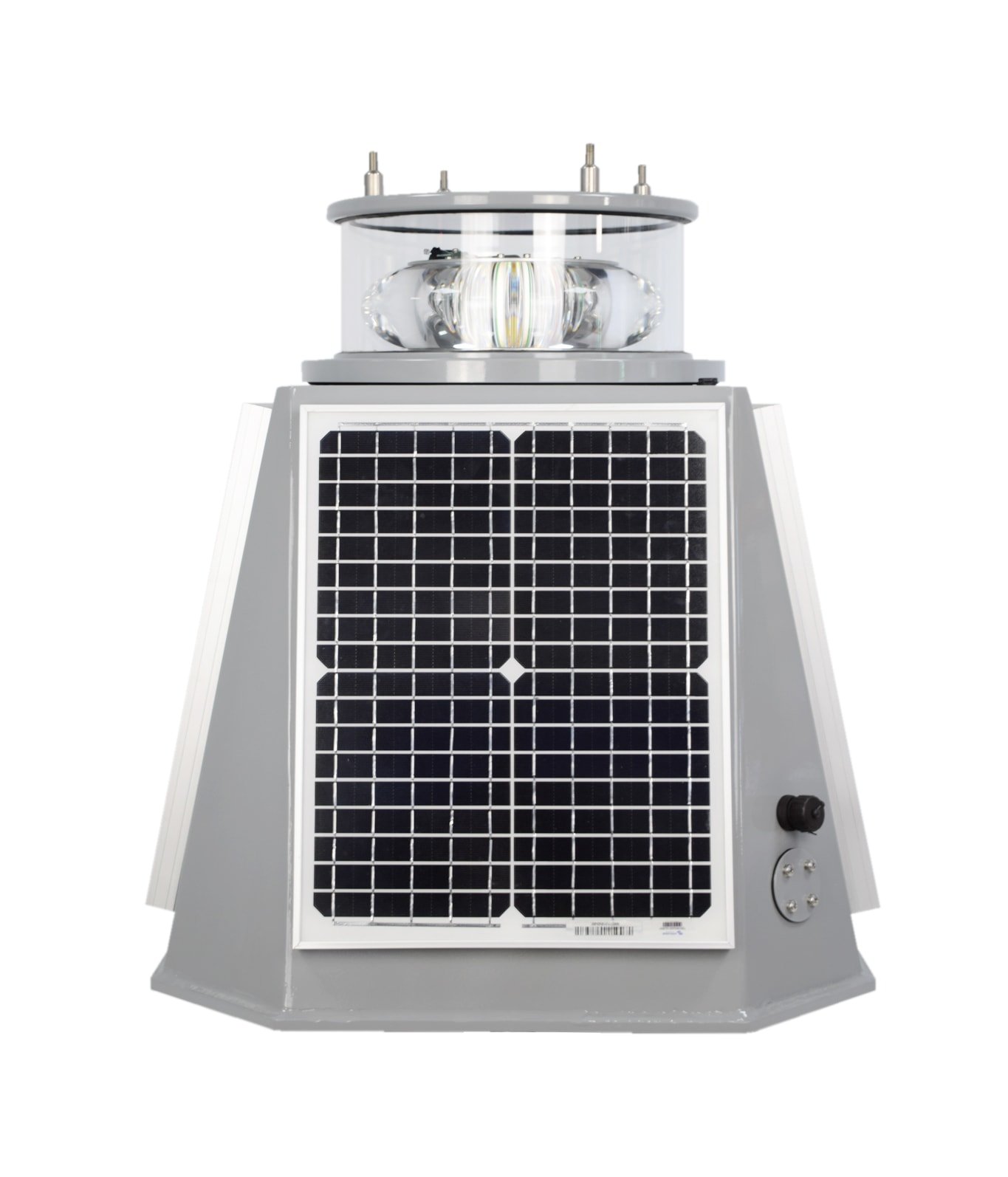

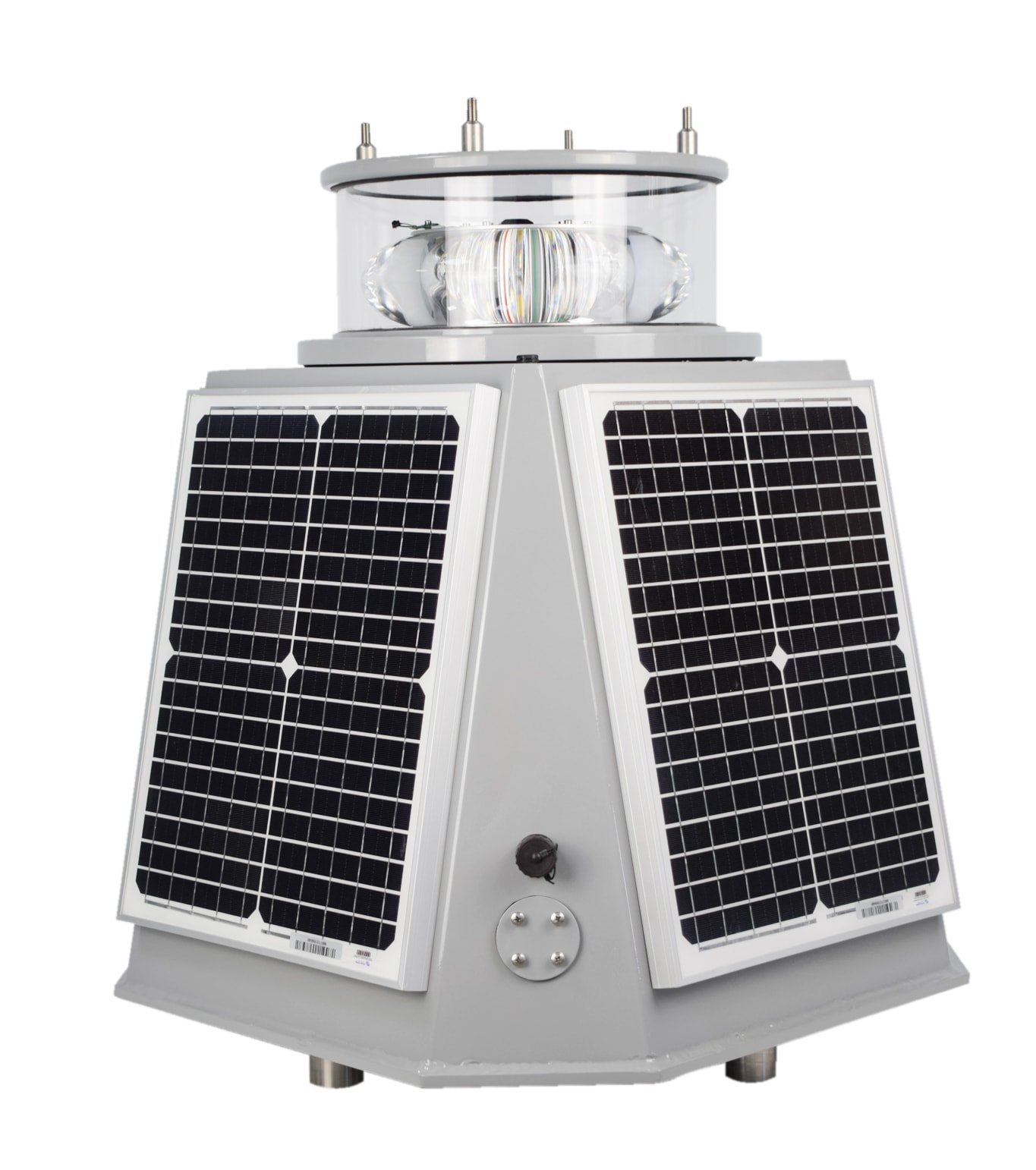

The MCL400HD is a compact LED marine lantern of medium range, with built-in solar power, characterized by great optical efficiency and low consumption, made up of LED diodes of high intensity, reaching a maximum range of 22 nautical miles.
The MCL400HD is a compact LED marine lantern of medium range, with built-in solar power, characterized by great optical efficiency and low consumption, made up of LED diodes of high intensity, reaching a maximum range of 22 nautical miles.

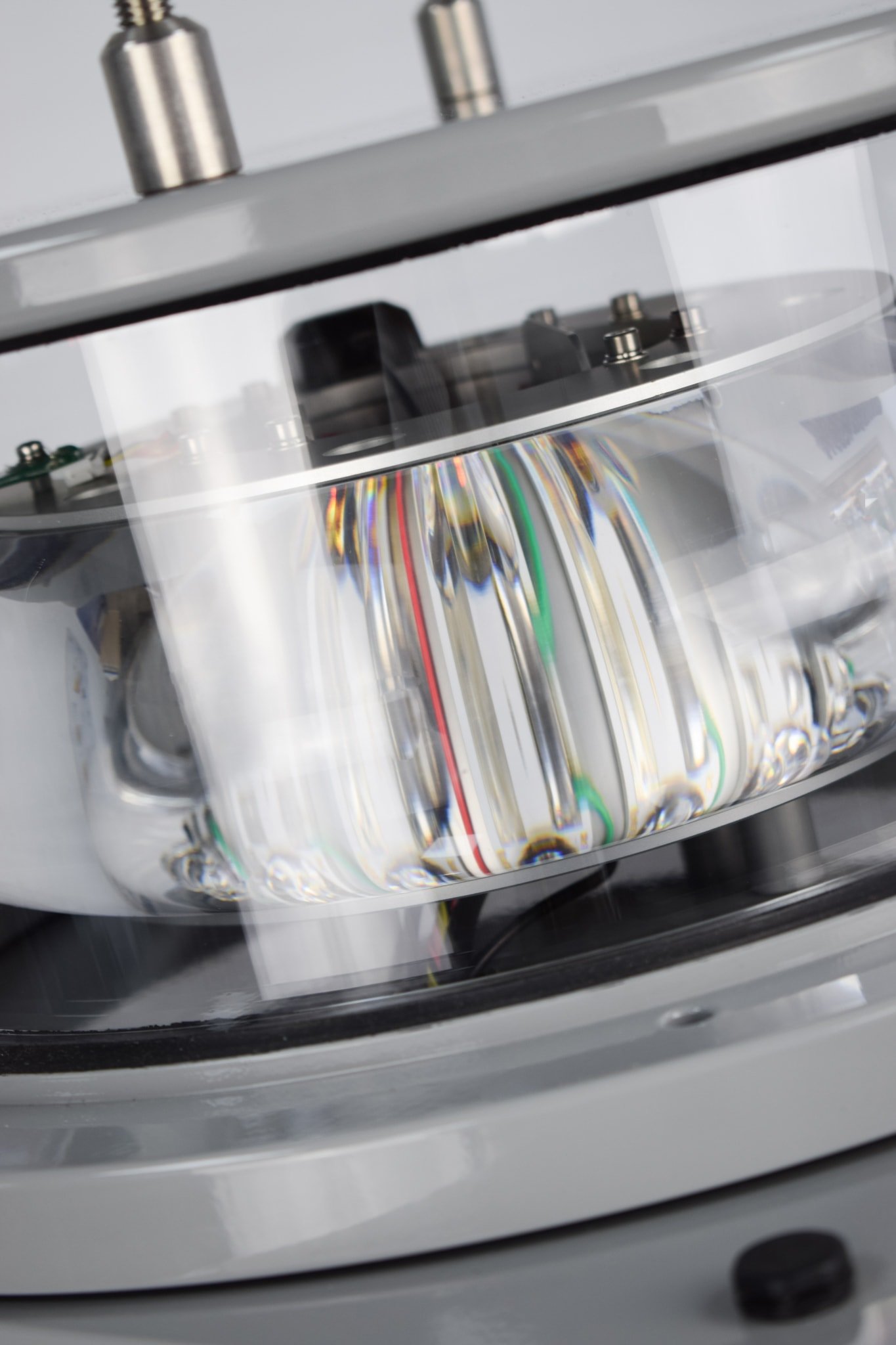

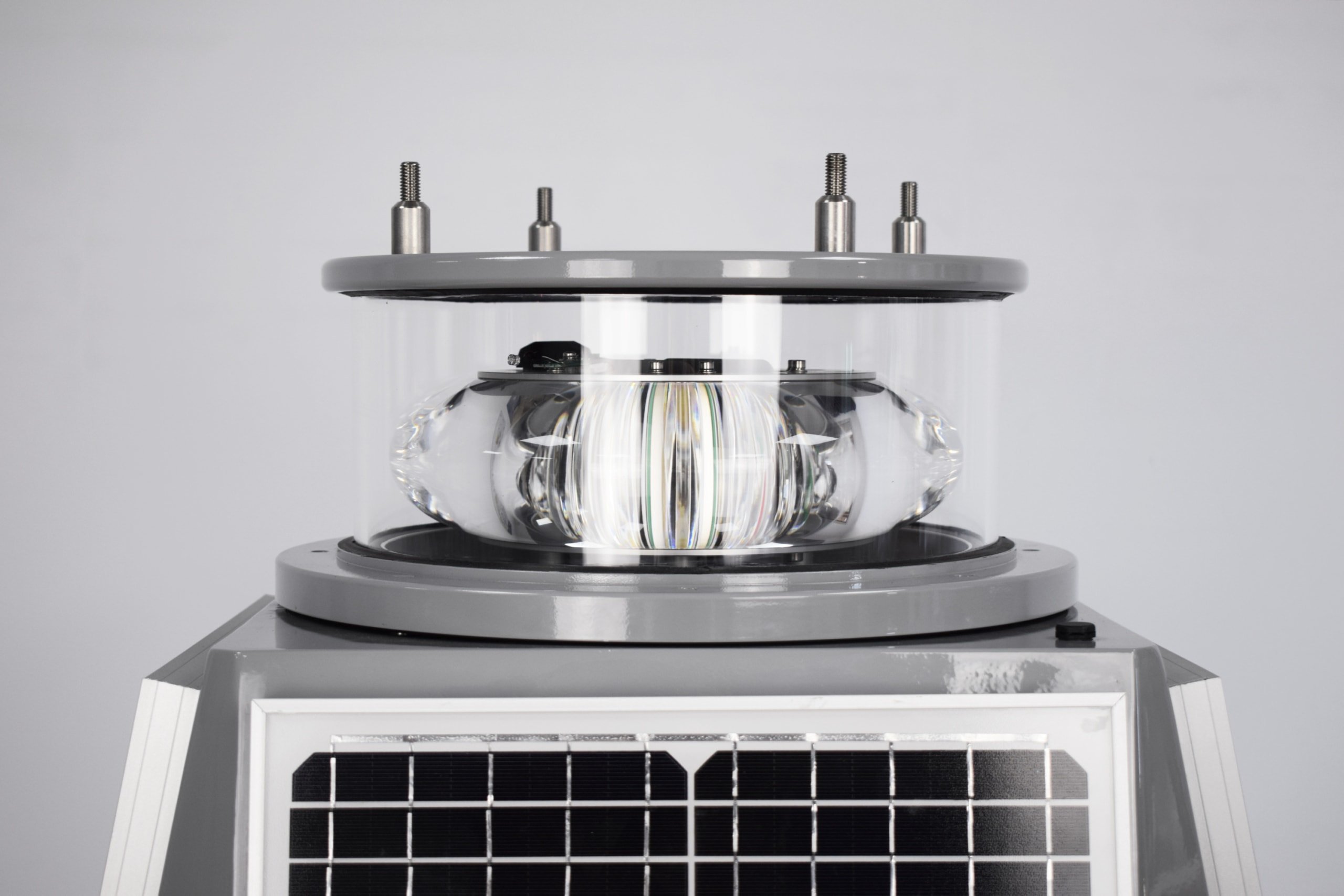

| High-efficiency luminous system | Up to 15 nm (T=0.74), 22 nm (T=0.85) |
|---|
| 360º horizontal output |
|---|
| IP 68 watertightness degree | Immersion resistant |
|---|
| Programming, configuration and operating status | Via PC, Bluetooth or IR programmer as an option |
|---|
| Autonomy without solar charging | Up to 400 hours |
|---|
| 4 nos. solar modules | Of 20 W each |
|---|
| Vertical divergence | Of 12º (50% IO ) |
|---|
| Average operation lifetime | Over 10 years |
|---|
| Double RS-232 serial port for setting adjustments | By PC and remote monitoring system |
|---|
| Ready to integrate remote monitoring | Via GSM, UHF or satellite, synchronization via GPS or AIS AtoN module |
|---|
| Automatic energy management | According to solar radiation |
|---|
| Base made of marine aluminum |
|---|
